Footnote

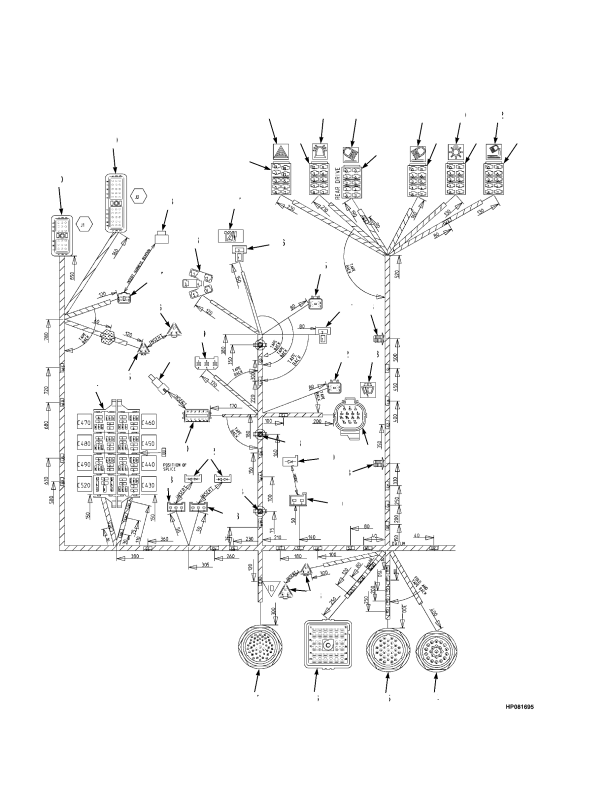

Q1: Harness 2066200 (Perkins)
Q2:Harness 2076603 (Cummins)
Q3:Harness 2079043 (Cummins)

a → S/N G007E02257
b S/N G007E02258 ↔ S/N G007E02516C
c S/N G007E02517C →

Products

* All prices are excl. VAT

No. Code Name Q1 Q2 Q3 Price
No. Code Name q1 q2 q3 Price
1 1484675 CONNECTOR BODY 1 1 1 € 10.90
1 1484556 TERMINAL 7 7 7 € 2.66
1 233141 Terminal 2 2 2 € 0.87
2 1570638 Label (Hazard Light) 1 1 1 € 1.24
3 1484555 Switch (10-Way) 1 1 1 € 11.84
3 1484556 TERMINAL 3 3 3 € 2.66
4 1570639 Label (Beacon Switch) 1 1 1 € 1.11
5 1484555 Switch (10-Way) 1 1 1 € 11.84
5 1484556 TERMINAL 4 4 4 € 2.66
6 1497362 Label (Rear Worklight Switch) 1 1 1 € 1.17
7 1484555 Switch (10-Way) 1 1 1 € 11.84
7 233141 Terminal 4 4 4 € 0.87
8 1497361 Label (Front Worklight Switch) 1 1 1 € 1.42
9 1484555 Switch (10-Way) 1 1 1 € 11.84
9 1484556 TERMINAL 4 4 4 € 2.66
10 1570641 Label (Roadlight Switch) 1 1 1 € 1.13
11 1484555 Switch (10-Way) 1 1 1 € 11.84
11 1484556 TERMINAL 2 2 2 € 2.66
11 233141 Terminal 2 2 2 € 0.87
12 1570643 Label (Mast And Attachment Worklight) 1 1 1 € 1.11
13 1500927 CLIP 1 1 1 € 2.51
14 1330437 Terminal (Pin) 7 7 7 € 0.00
14 1330439 plug 16 16 16 € 0.96
14 1500919 CONNECTOR 1 1 1 € 197.46
14 1484686 Washer (Spring) 1 1 1 € 10.34
14 1484685 Locknut 1 1 1 € 30.65
15 1484685 Locknut 1 1 1 € 30.65
15 1484686 Washer (Spring) 1 1 1 € 10.34
15 1502712 Terminal (Pin) 2 2 2 € 0.00
15 1484666 HOUSING 1 1 1 € 205.22
15 1493434 Terminal (Socket) 3 3 3 € 0.00
15 1330437 Terminal (Pin) 28 28 28 € 0.00
16 1330439 plug 2 € 0.96
16 1484709 Terminal (Pin) 2 2 € 0.00
16 1502712 Terminal (Pin) 2 2 2 € 0.00
16 1484363 HOUSING 1 1 1 € 208.73
16 1484662 key (retainer pin) 1 1 1 € 10.73
17 1484666 HOUSING 1 1 1 € 205.22
17 1463140 terminal 29 29 29 € 2.11
17 1484686 Washer (Spring) 1 1 1 € 10.34
17 1484377 plug 11 11 11 € 1.34
17 1330437 Terminal (Pin) 5 5 5 € 0.00
18 1484397 CONNECTOR 1 1 1 € 12.21
18 1330438 terminal (socket) 3 3 3 € 0.00
19 1484718 TERMINAL 2 2 2 € 0.74
19 1582102 HOUSING 1 1 1 € 7.57
20 1582103 DIODE 1 1 1 € 13.65
21 1484654 CONNECTOR 1 1 1 € 11.19
21 1484595 SEAL 4 49 4 € 0.87
21 1484656 TERMINAL 9 9 9 € 1.73
21 1484597 SEAL 9 9 9 € 1.92
21 1484708 Terminal (Socket) 4 4 4 € 0.00
21 1484655 RETAINER 1 1 1 € 2.66
22 1330438 terminal (socket) 4 4 4 € 0.00
22 1489657 CONNECTOR LOCK 1 1 1 € 2.34
22 1489656 CONNECTOR 1 1 1 € 15.37
23 1570644 LABEL 1 1 1 € 2.08
24 1484556 TERMINAL 2 2 2 € 2.66
24 1465378 CONNECTOR BODY 1 1 1 € 7.43
25 1489657 CONNECTOR LOCK 1 1 1 € 2.34
25 1489656 CONNECTOR 1 1 1 € 15.37
25 1363886 terminal (socket) 2 2 2 € 0.00
25 1330438 terminal (socket) 2 2 2 € 0.00
26 1465378 CONNECTOR BODY 1 1 1 € 7.43
26 1484556 TERMINAL 2 2 2 € 2.66
27 1570645 Label (12 Volt) 1 1 1 € 0.00
28 370728 Connector Body 1 1 1 € 2.30
28 141462 terminal 1 1 1 € 2.93
28 1484375 TERMINAL 3 3 3 € 1.73
29 1484556 TERMINAL 6 6 6 € 2.66
29 1484676 Housing (Socket) 1 1 1 € 4.31
30 1493428 CONNECTOR 1 1 1 € 58.62
30 1330438 terminal (socket) 10 10 10 € 0.00
30 1500913 CONNECTOR LOCK 1 1 1 € 3.72
30 1330439 plug 2 2 2 € 0.96
31 1 1 1 € 0.00
32 1484717 diode 2 2 2 € 17.71
33 2047859 CONNECTOR BODY 2 2 2 € 2.57
33 1484718 TERMINAL 8 8 8 € 0.74
34 1484714 Clip (Active Side Mounting) 2 2 2 € 8.47
34 1484715 Clip (Passive Side Mounting) 2 2 2 € 7.52
35 1610944 LOCK 2 2 2 € 4.54
35 1484397 CONNECTOR 1 1 1 € 12.21
36 1607772 CONNECTOR 1 1 1 € 17.80
37 1330437 Terminal (Pin) 4 4 4 € 0.00
37 1330416 connector (secondary lock) 1 1 1 € 1.38
37 1489655 Connector (4 Way) 1 11 1 € 15.61
38 2058006 WIRE HARNESS 1 1 1 € 179.31
39 1607842 CONNECTOR 1 1 1 € 79.73
39 1532571 TERMINAL 28 28 28 € 0.79
40 1532571 TERMINAL 11 12 13 € 0.79
40 1607782 Connector (18-Way) 1 1 1 € 0.00
