Footnote

Q1. Petrol and LPG (Oil Clutch)
Q2. Petrol and LPG (Powershift)
Q3. Diesel (Oil Clutch)
Q4. Diesel (Powershift)

a → S/N F006A03039
b → S/N F006A08488
c → S/N F006A09744
d → S/N F006A10107
e S/N F006A03040 →
f S/N F006A08489 →
g S/N F006A09745 →
h S/N F006A10108 →
1 1 1 1 1 1 2 3 3 3 3 3 3 4 5 5 5 6 7 7 8 8 9 10 10 11 11 12 12 12 12 13 14 14 14 15 15 16 17 17 17 17 18

Products

* All prices are excl. VAT

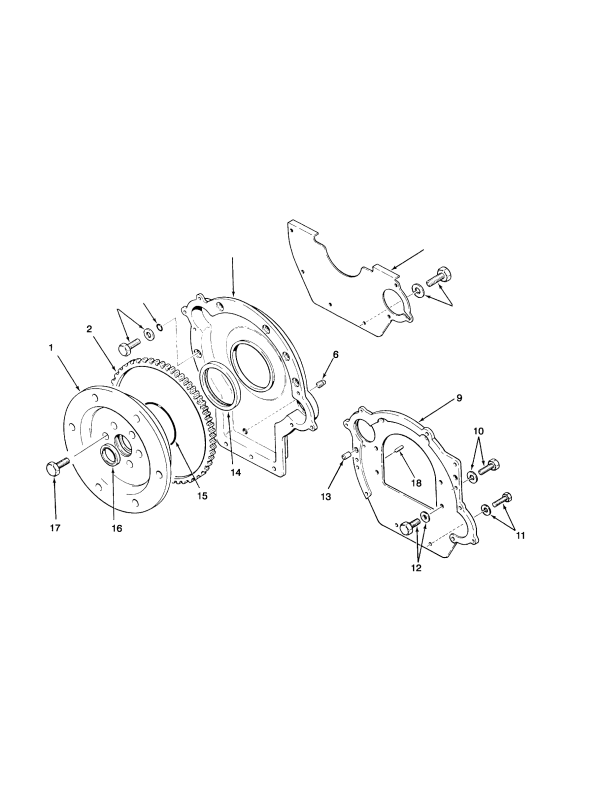

No. Code Name Q4 Notes Q3 Q2 Q1 Price
No. Code Name q4 notes q3 q2 q1 Price
1 344357 flywheel (ffigure 2-3) 1 c € 0.00
1 284150 flywheel 1 € 0.00
1 1454600 FLYWHEEL 1 g € 1102.63
1 1459400 FLYWHEEL h 1 € 545.05
1 350152 flywheel (ffigure 2-3) d 1 € 0.00
1 350153 flywheel (ffigure 2-3) 1 € 0.00
2 195856 ring gear 1 1 1 1 € 129.32
3 177461 capscrew 5 € 0.76
3 221500 capscrew a 6 € 0.81
3 296420 washer e 6 € 1.61
3 261379 washer a 6 5 € 2.37
3 293630 capscrew e 6 € 1.31
4 184924 o-ring 6 5 € 0.45
5 377325 adapter e 1 € 0.00
5 344359 adapter 1 € 0.00
5 344283 adapter 1 € 0.00
6 15303 plug 1 1 € 3.35
7 1384335 cover f 1 € 217.23
7 350155 cover b 1 € 0.00
8 292681 Lockwasher 4 € 0.14
8 287851 capscrew 4 € 0.23
9 377326 adapter 1 € 1162.13
10 220159 Capscrew 3 € 3.83
10 16828 capscrew 3 € 1.07
11 176640 Bolt 4 € 0.25
11 292681 Lockwasher 4 € 0.14
12 221503 capscrew 6 € 1.18
12 221767 washer 6 € 1.09
12 296420 washer 6 e € 1.61
12 293630 capscrew 6 e € 1.31
13 1335499 PIN 2 € 11.62
14 141113 oil seal 1 € 25.16
14 267538 oil seal 1 € 38.85
14 273338 thread sealant AR AR € 0.00
15 281067 o-ring 1 € 0.00
15 224625 o-ring 1 € 11.84
16 43205 ball bearing 1 1 € 25.01
17 273338 thread sealant AR AR € 0.00
17 92816 bolt 6 € 2.31
17 284152 bolt 6 6 € 12.02
17 97577 bolt 6 € 5.45
18 186420 dowel 2 e 2 € 6.08
